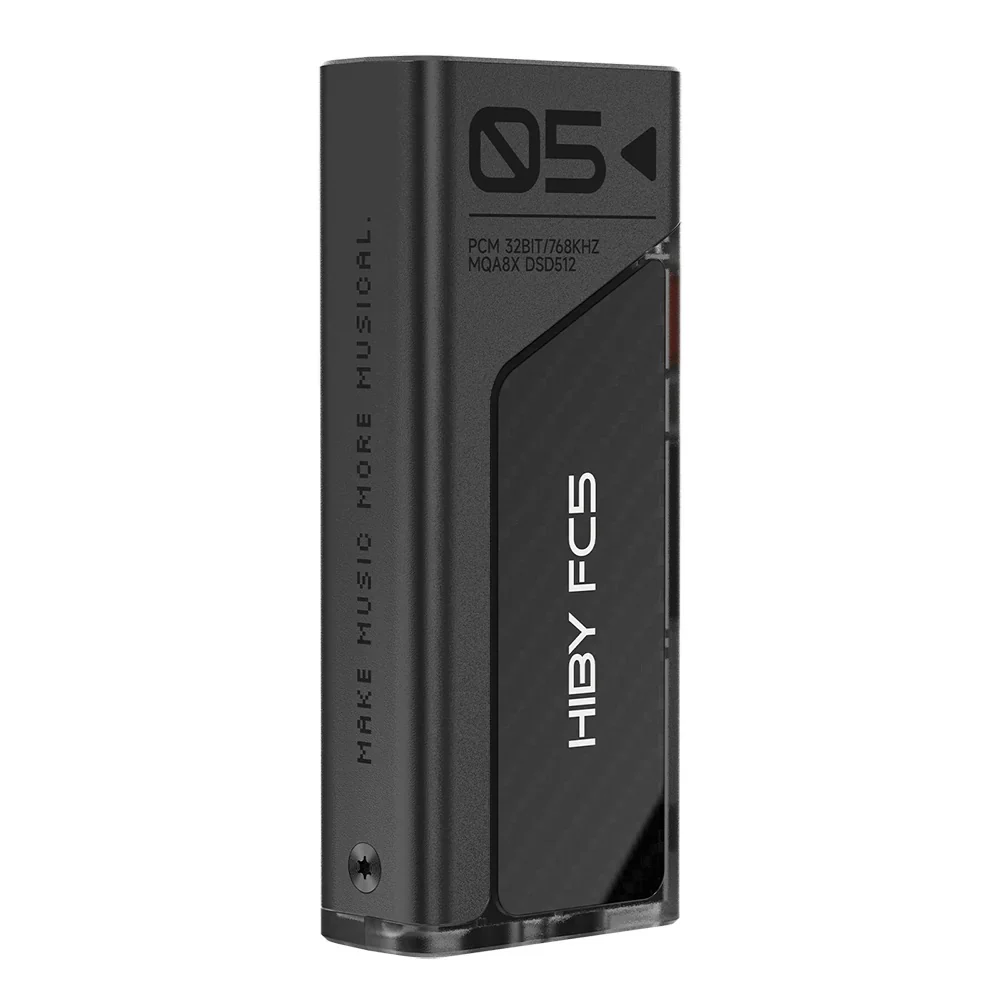

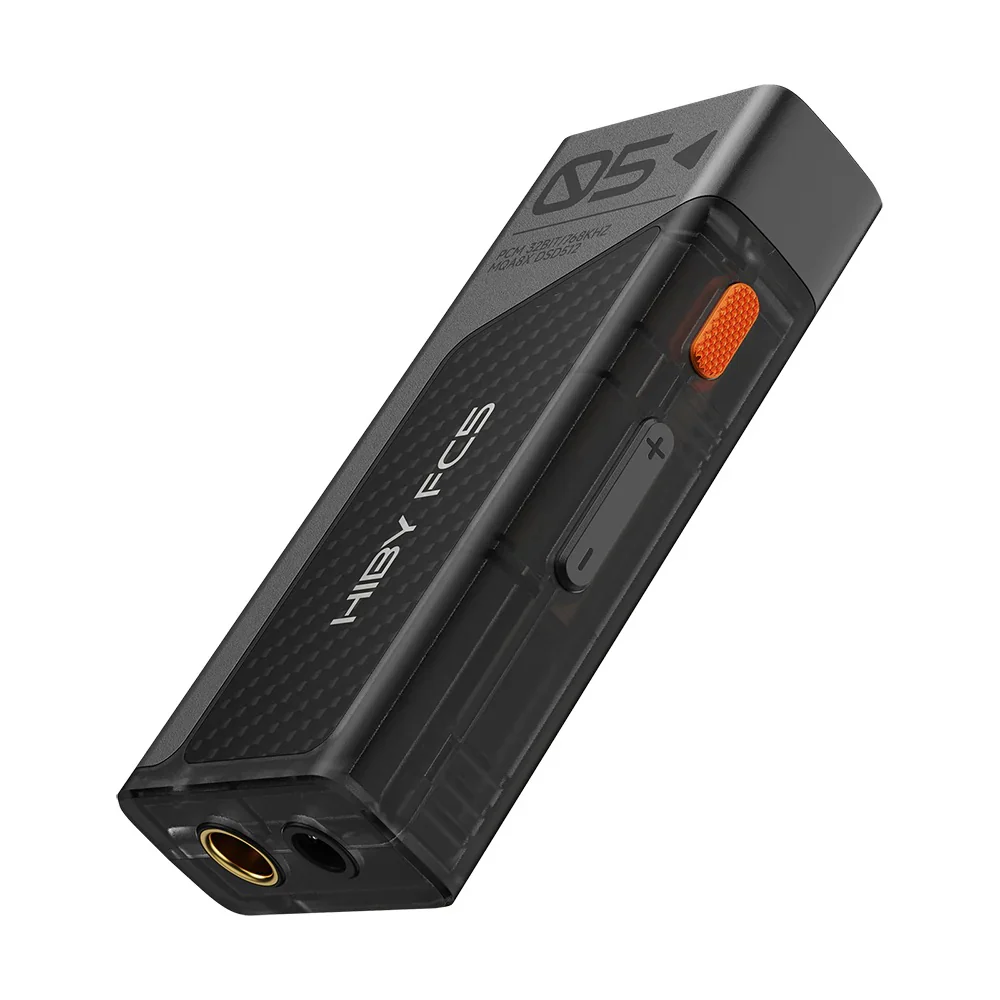

HiBy FC5 Dongle With Display DAC/Amp
The HiBy FC5 with Display utilizes dual Cirrus Logic CS43198 DACs, delivering high-resolution audio with exceptional clarity and detail. Its dual SGM8261-5 amplifier chips provide ample power, capable of driving a wide range of headphones and IEMs. The device supports PCM playback up to 768kHz/32-bit, native DSD512, and full 8x MQA unfolding, ensuring compatibility with various high-resolution audio formats.
Specs:
DAC Chips: Dual Cirrus Logic CS43198
Amplifier Chips: Dual SGM8261-5
Audio Format Support:
- PCM: Up to 768kHz/32-bit
- DSD: Up to DSD512
MQA: Supports 8x unfolding
Output Power:
- 3.5mm Single-Ended: Up to 125mW @ 32Ω
- 4.4mm Balanced: Up to 245mW @ 32Ω
Display: 1.1” OLED color screen
Chassis: Aluminum alloy with translucent polycarbonate mesh
Weight: Approximately 21 grams
Connectivity: USB-C input; 3.5mm and 4.4mm headphone outputs
The HiBy FC5 with Display utilizes dual Cirrus Logic CS43198 DACs, delivering high-resolution audio with exceptional clarity and detail. Its dual SGM8261-5 amplifier chips provide ample power, capable of driving a wide range of headphones and IEMs. The device supports PCM playback up to 768kHz/32-bit, native DSD512, and full 8x MQA unfolding, ensuring compatibility with various high-resolution audio formats.
Specs:
DAC Chips: Dual Cirrus Logic CS43198
Amplifier Chips: Dual SGM8261-5
Audio Format Support:
- PCM: Up to 768kHz/32-bit
- DSD: Up to DSD512
MQA: Supports 8x unfolding
Output Power:
- 3.5mm Single-Ended: Up to 125mW @ 32Ω
- 4.4mm Balanced: Up to 245mW @ 32Ω
Display: 1.1” OLED color screen
Chassis: Aluminum alloy with translucent polycarbonate mesh
Weight: Approximately 21 grams
Connectivity: USB-C input; 3.5mm and 4.4mm headphone outputs
Description
The HiBy FC5 with Display utilizes dual Cirrus Logic CS43198 DACs, delivering high-resolution audio with exceptional clarity and detail. Its dual SGM8261-5 amplifier chips provide ample power, capable of driving a wide range of headphones and IEMs. The device supports PCM playback up to 768kHz/32-bit, native DSD512, and full 8x MQA unfolding, ensuring compatibility with various high-resolution audio formats.
Specs:
DAC Chips: Dual Cirrus Logic CS43198
Amplifier Chips: Dual SGM8261-5
Audio Format Support:
- PCM: Up to 768kHz/32-bit
- DSD: Up to DSD512
MQA: Supports 8x unfolding
Output Power:
- 3.5mm Single-Ended: Up to 125mW @ 32Ω
- 4.4mm Balanced: Up to 245mW @ 32Ω
Display: 1.1” OLED color screen
Chassis: Aluminum alloy with translucent polycarbonate mesh
Weight: Approximately 21 grams
Connectivity: USB-C input; 3.5mm and 4.4mm headphone outputs
